Description

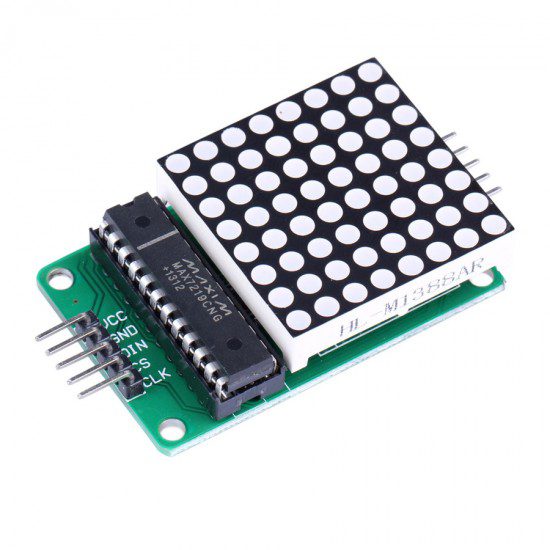

The MAX7219 8×8 LED Matrix Module uses the MAX7219 driver IC, which enables easy control of multiple LEDs with minimal wiring. It supports chaining multiple modules together, allowing for larger displays. The module communicates using SPI protocol and is widely used in Arduino, ESP32, and Raspberry Pi projects for scrolling text, animations, numeric counters, and digital signs. Its onboard IC simplifies multiplexing and brightness control, making it perfect for DIY electronics and IoT display projects.

Key Features

• 8×8 LED matrix display controlled by MAX7219 IC

• Supports SPI communication (DIN, CLK, CS)

• Adjustable brightness levels

• Chainable modules for larger displays

• Compact, easy-to-use for Arduino, ESP32, and Raspberry Pi

• Ideal for scrolling text, counters, and animations

Variants

• Single MAX7219 8×8 Module

• Chainable multiple-module packs

Specifications

Applications

• Scrolling text displays

• Digital clocks and counters

• Numeric and alphanumeric displays

• Arduino, ESP32, and Raspberry Pi display projects

• DIY signage and electronic badges

Compatible Boards / Circuits

• Arduino Uno, Mega, Nano

• ESP32 / ESP8266

• Raspberry Pi (via SPI)

• Any microcontroller supporting SPI communication
