Description

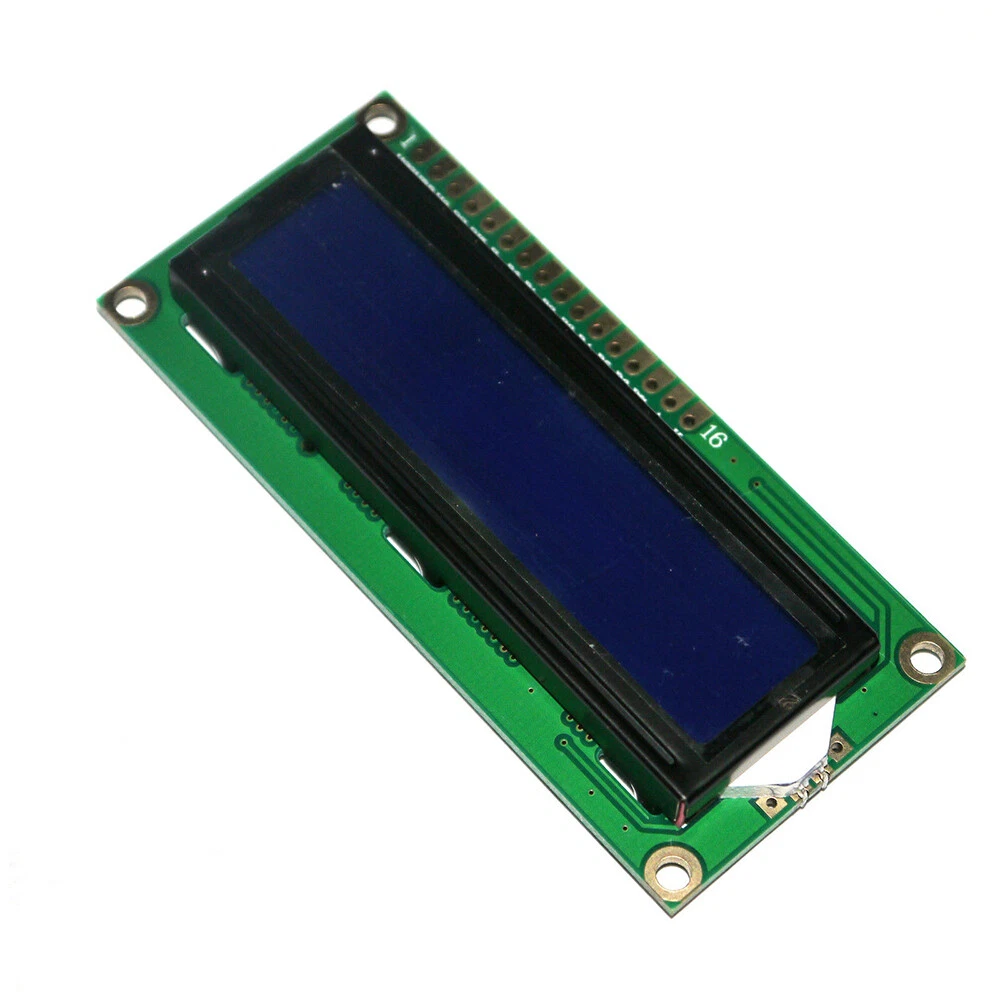

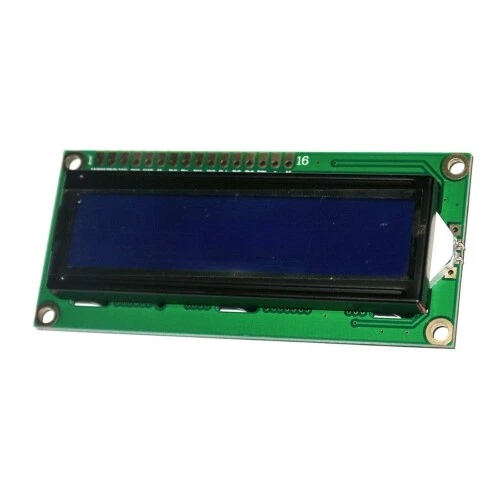

The 16×2 LCD module uses the HD44780 driver (or compatible) and provides a simple way to display text and basic symbols. It supports both 4-bit and 8-bit parallel communication and can be interfaced with microcontrollers via direct GPIO or using an I2C backpack for simplified wiring. Ideal for menus, sensor readings, and status messages, it’s a staple in embedded systems and IoT projects.

Key Features

• Displays 16 characters per line, 2 lines

• HD44780 or compatible driver

• Supports 4-bit and 8-bit modes

• Backlight LED (usually adjustable)

• Easy integration with Arduino, ESP32, Raspberry Pi

Variants

• Standard 16×2 LCD (parallel interface)

• 16×2 LCD with I2C Backpack (reduces wiring)

Specifications

Applications

• Text-based user interfaces

• IoT dashboards

• Sensor data display

• Robotics status panels

• Home automation displays

Compatible Boards

• Arduino Uno, Mega, Nano

• ESP32 / ESP8266

• Raspberry Pi (via I2C or GPIO)
