Description
The 1N4007 is a silicon rectifier diode capable of handling high voltages up to 1000V and forward currents up to 1A. It is commonly used in AC-to-DC rectification, polarity protection, and general electronic circuits. Its robust design and reliability make it a staple component in both hobbyist and industrial electronics.
Key Features
-
High-voltage capability: up to 1000V
-
Forward current: 1A continuous
-
Low leakage current
-
Fast switching for rectification
-
Robust and reliable for general-purpose use
Variants
-

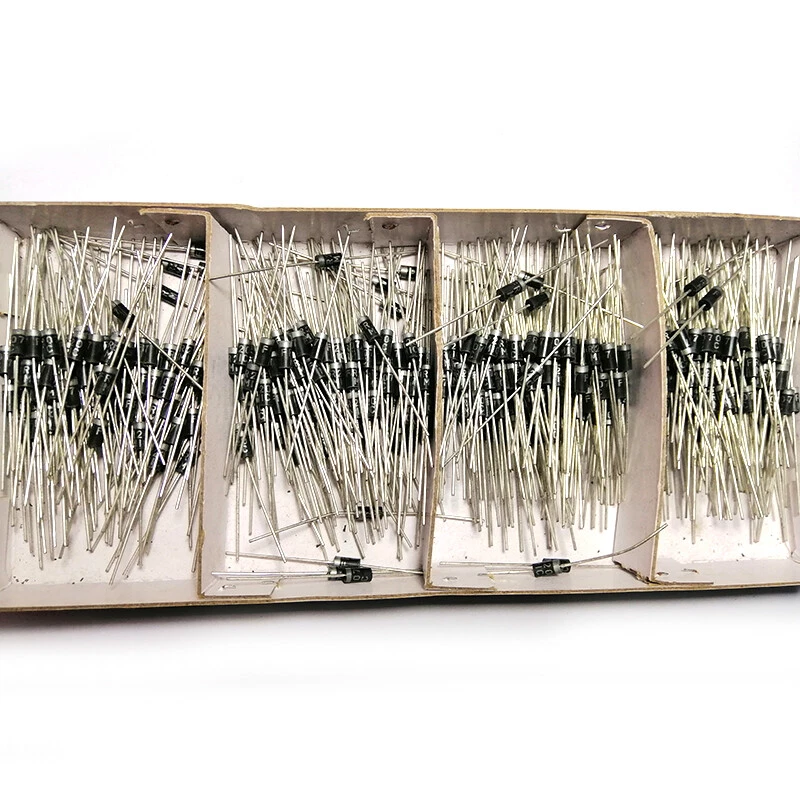

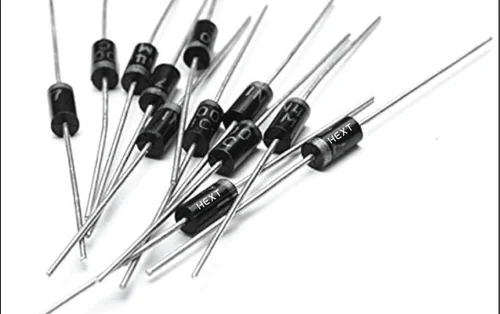

Standard 1N4007 Diode (axial lead)
-
1N4007 SMD version for PCB assembly
Specifications
| Feature | Details |
|---|---|
| Maximum Repetitive Peak Reverse Voltage | 1000V |
| Maximum RMS Voltage | 700V |
| Maximum DC Blocking Voltage | 1000V |
| Forward Current | 1A |
| Forward Voltage Drop | 0.7V @ 1A |
| Package | DO-41 Axial Lead / SMD |
| Operating Temperature | -65°C to +150°C |
Applications
-
AC to DC rectification
-
Power supply protection
-
Polarity protection
-
Electronics DIY projects
-
General-purpose electronics circuits
Compatible Boards / Circuits
-
Arduino / ESP32 circuits (for polarity protection)
-
Power supply rectifier modules
-
Embedded electronics projects
-
Robotics and automation power circuits
