Description

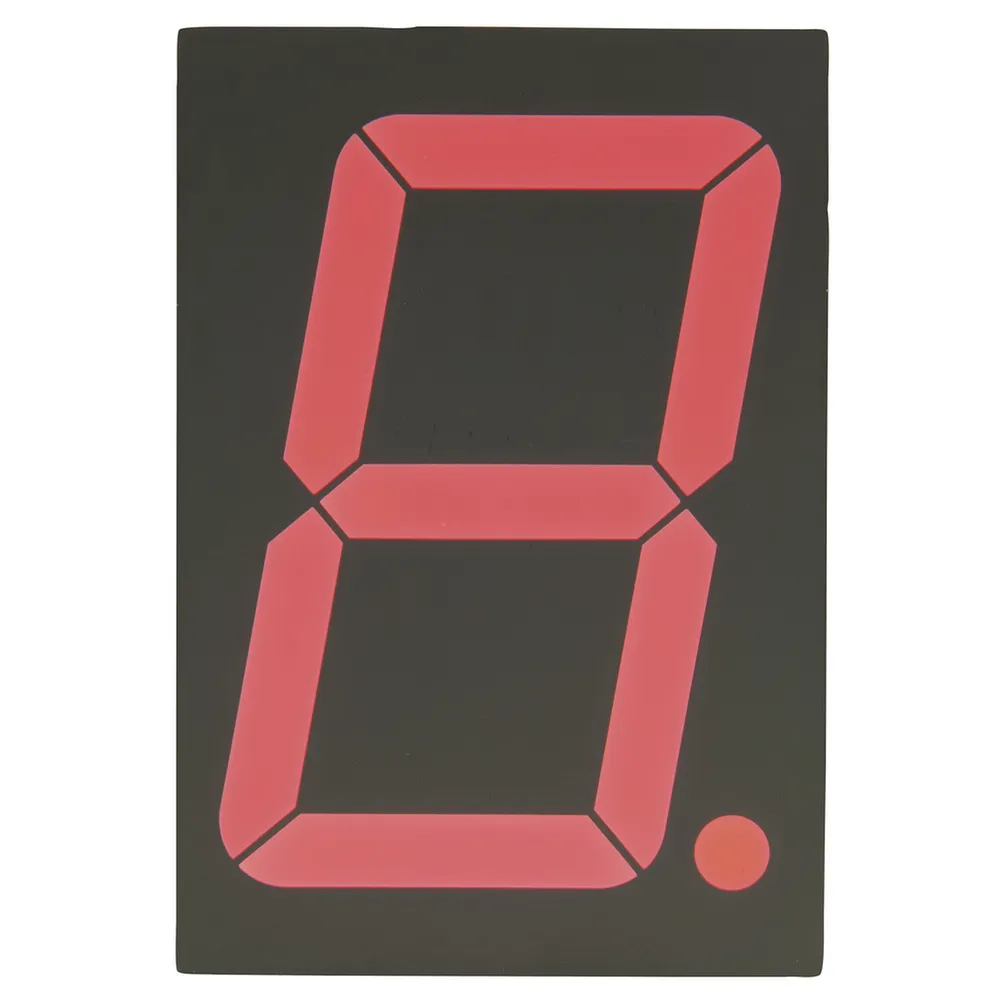

The ASD-230CI 0.56” Seven Segment Display is a bold, high-brightness numerical display module designed for projects requiring large and easily readable digits. With a character height of 0.56 inches, it is suitable for viewing at long distances, making it perfect for scoreboard displays, timers, measurement equipment, and industrial instrumentation.
Each segment is built using high-efficiency LEDs, providing excellent clarity and long operational life. The display is easy to interface using common cathode or common anode configurations (depending on variant). It can be driven using transistor arrays like ULN2803, current-limiting resistors, or display driver ICs such as MAX7219, TM1637, or CD4511.
The ASD-230CI is ideal for both hobbyist and professional applications requiring a robust and readable numeric display.
Key Features
-
Large 0.56” digit height for long-distance visibility
-
High-brightness LED segments
-
Long-life, energy-efficient LED technology
-
Easy to interface with microcontrollers (Arduino, ESP32, STM32, etc.)
-
Available in common anode or common cathode configurations
-
Works with display driver ICs (MAX7219, ULN2803, CD4511)
-
Suitable for indoor display panels and control systems
Specifications
| Feature | Details |
|---|---|
| Model | ASD-230CI |
| Display Type | Seven Segment LED |
| Digit Height | 0.56 inches |
| Colors Available | Red (standard), others depending on stock |
| Configuration | Common Anode / Common Cathode |
| Operating Voltage | Typically 1.8–2.2V per segment (depends on color) |
| Current per Segment | 10–20mA |
| Number of Segments | 7 segments + decimal point |
| Viewing Distance | Up to 10 meters |
| Operating Temperature | −20°C to +70°C |
| Dimensions | Approx. 55mm × 35mm × 10mm |
Applications
-
Digital clocks and timers
-
Scoreboards
-
Voltage/current display panels
-
Industrial counters
-
Measurement and calibration devices
-
Weight scale displays
-
Public information boards
-
DIY electronics projects
