Description
The STM32F401 Development Board is based on the STM32F401 microcontroller featuring an ARM Cortex-M4 core with floating-point unit, delivering high-speed computation and low power consumption. The board comes with multiple GPIO pins, ADCs, timers, PWM outputs, and communication interfaces like UART, SPI, I²C, and USB. It is perfect for real-time control, robotics, IoT devices, motor control, and advanced embedded systems. The board is fully compatible with STM32CubeIDE, Arduino IDE (with STM32 add-ons), and PlatformIO.
Key Features
-
ARM Cortex-M4 STM32F401 microcontroller
-
High-speed processing at 84 MHz
-
Multiple GPIO, ADC, PWM, UART, SPI, I²C interfaces
-
USB interface for programming and debugging
-
Breadboard-friendly compact size
-
Compatible with STM32CubeIDE, Arduino IDE, and PlatformIO
-
Low power consumption, ideal for battery-powered applications
Variants
-
STM32F401 Standard Development Board
-

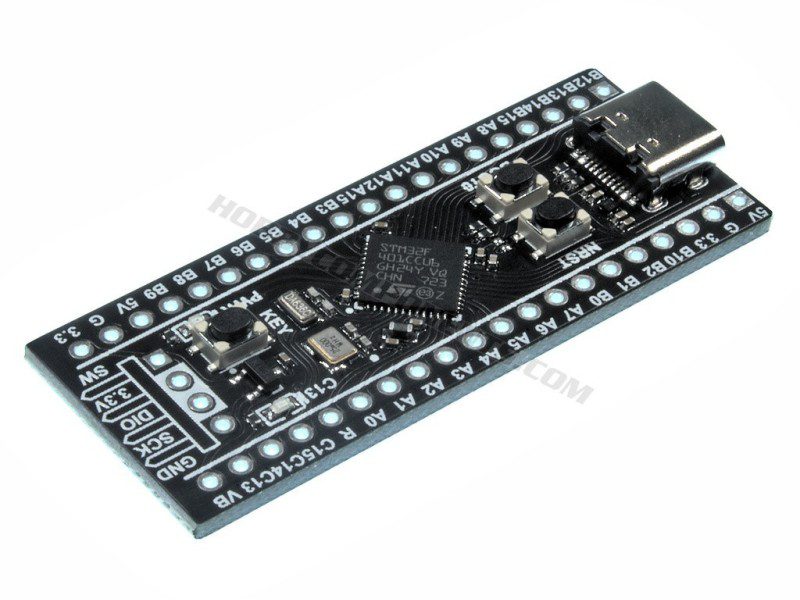

STM32F401 “Black Pill” Board
Specifications
| Feature | Details |
|---|---|
| Microcontroller | STM32F401 (Cortex-M4) |
| Operating Voltage | 3.3V |
| Input Voltage | 5V via USB |
| Flash Memory | 512 KB |
| SRAM | 96 KB |
| Digital I/O Pins | 26+ |
| ADC | 12-bit |
| Communication Interfaces | UART, SPI, I²C, USB |
| Clock Speed | 84 MHz |
| Dimensions | 52 × 22 mm |
Applications
-
Robotics and automation projects
-
IoT devices and sensors
-
Motor control and real-time embedded systems
-
Data acquisition and signal processing
-
Wearable electronics and portable devices
Compatible Boards / Circuits
-
STM32CubeIDE for STM32 programming
-
Arduino IDE (with STM32 core)
-
PlatformIO IDE
-
Compatible with sensors, actuators, and displays
