Description

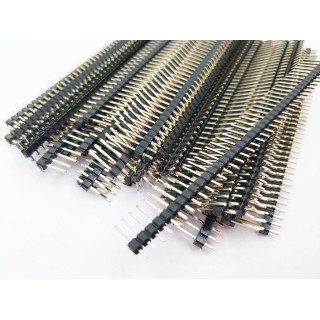

Male Header Pins consist of a series of metal pins mounted on a plastic strip, commonly used to connect electronic modules, sensors, and microcontrollers to PCBs or breadboards. They are ideal for prototyping and creating custom circuit connections. The pins can be cut to the desired length and soldered directly to PCBs or stacked to form pin arrays.
Key Features
-
Standard 0.1-inch (2.54 mm) pitch
-
Easy to solder onto PCBs or perfboards
-
Compatible with female headers, jumper wires, and connectors
-
Available in various pin counts (single, double, or multiple rows)
Variants
-
Straight male header pins
-
Right-angle male header pins
-
Single-row / double-row options
Specifications
| Feature | Details |
|---|---|
| Pin Pitch | 2.54 mm (0.1 inch) |
| Number of Pins | 1–40 per strip (customizable) |
| Material | Tin-plated or gold-plated copper |
| Mount Type | Through-hole |
| Row Orientation | Straight or right-angle |
Applications
-
Connecting modules and sensors to Arduino, ESP32, Raspberry Pi
-
Prototyping on breadboards
-
PCB connections for microcontrollers and shields
-
Custom jumper wire interfaces
Compatible Boards / Circuits
-
Arduino Uno, Mega, Nano
-
ESP32 / ESP8266
-
Raspberry Pi GPIO connections
-
DIY electronic modules
