Description
The L293D Motor Driver IC is a popular integrated circuit used in robotics and automation projects to control DC motors and stepper motors. It features dual H-Bridge circuits that enable bidirectional motor control with PWM support for speed regulation. Ideal for Arduino, ESP32, and other microcontroller projects, it can drive motors with voltages from 4.5V to 36V and up to 600mA per channel. With internal diodes for back EMF protection, it is safe and reliable for hobbyist and educational robotics projects.
Key Features
-
Dual H-Bridge driver IC for controlling 2 DC motors or 1 stepper motor
-
Motor voltage range: 4.5–36V
-
Output current: 600 mA per channel (1.2A peak)
-
PWM speed control capable
-
Internal diodes for back EMF protection
-
Compatible with Arduino, ESP32, Raspberry Pi, and other microcontrollers
Variants
-
L293D Standard IC
-
L293D with breakout board for easier connection
Specifications
| Feature | Details |
|---|---|
| Motor Channels | 2 (dual H-Bridge) |
| Motor Voltage | 4.5–36V |
| Output Current | 600 mA per channel (1.2A peak) |
| Control | Logic input with PWM support |
| Protection | Internal diodes for back EMF |
| Package | DIP-16 |
| Dimensions | 19 × 10 mm |
Applications
-
Arduino and ESP32 robotics projects
-
DC motor bidirectional control
-
Stepper motor driving
-
IoT and automation projects
-
Small robotic vehicles and educational kits
Compatible Boards / Circuits
-
Arduino Uno, Mega, Nano
-
ESP32 / ESP8266
-
Raspberry Pi (via GPIO and motor interface)
-
Any microcontroller with digital I/O and PWM
E-Commerce Metadata
-
SKU: L293D-MOTOR-DRIVER
-
Price: 350 KES (adjustable)
-
Category: Motor Drivers & Controllers
-
Tags: L293D, Motor Driver IC, Arduino, ESP32, Stepper Motor, Robotics, H-Bridge
-
Brand: Generic
-
Stock Status: Instock
-
Stock Quantity: 120
-
Product Type: Simple
-
Attributes:
-
Motor Channels: 2 (Dual H-Bridge)
-
Motor Voltage: 4.5–36V
-
Output Current: 600 mA per channel
-
Control: PWM supported
-
Protection: Internal diodes
-
Package: DIP-16
-
I can next generate the entry for the L298N Motor Driver Module, which is another essential motor control component for your catalog.
Do you want me to continue with that?
You said:
ChatGPT said:
Here’s a Style C detailed entry with e-commerce metadata for the L9110S Motor Driver Module:

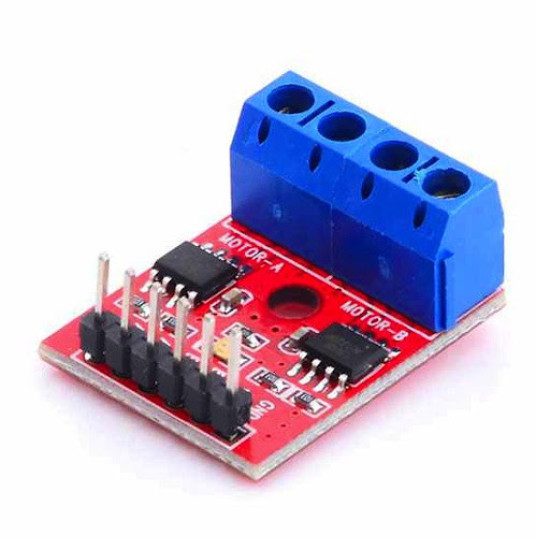

L9110S Dual Motor Driver Module
Short Description
The L9110S Motor Driver Module is a compact dual-channel motor driver that allows control of two DC motors or one stepper motor using low-voltage logic from microcontrollers.
Description (Detailed)
The L9110S Motor Driver Module is a small, easy-to-use dual-channel driver designed for low-power DC motors and small stepper motors. It is ideal for robotics, automation, and DIY electronics projects where space is limited. The module can control motor direction and speed using logic-level inputs, making it fully compatible with Arduino, ESP32, ESP8266, and Raspberry Pi. Its low operating voltage and small size make it perfect for lightweight robotics and educational projects.
Key Features
-
Dual-channel motor driver for 2 DC motors or 1 stepper motor
-
Operating voltage: 2.5–12V DC
-
Output current: 800 mA per channel (peak 1.5A)
-
Logic input for direction and speed control
-
Compact size for small robotics applications
-
Compatible with Arduino, ESP32, Raspberry Pi, and other microcontrollers
Variants
-
L9110S Dual Motor Driver Module (Standard)
-
L9110S with pin headers pre-soldered for easy connection
Specifications
| Feature | Details |
|---|---|
| Motor Channels | 2 (dual H-Bridge) |
| Operating Voltage | 2.5–12V DC |
| Output Current | 800 mA per channel (peak 1.5A) |
| Logic Input | 2 pins per motor channel |
| Package | Module with 4-pin header |
| Dimensions | 35 × 18 × 12 mm |
Applications
-
Small robotic cars and educational robots
-
Low-power DC motor control projects
-
Stepper motor driving (small stepper motors)
-
Arduino and ESP32 learning projects
-
IoT and lightweight automation applications
Compatible Boards / Circuits
-
Arduino Uno, Mega, Nano
-
ESP32 / ESP8266
-
Raspberry Pi (via GPIO control)
-
Any microcontroller with digital output
