Description

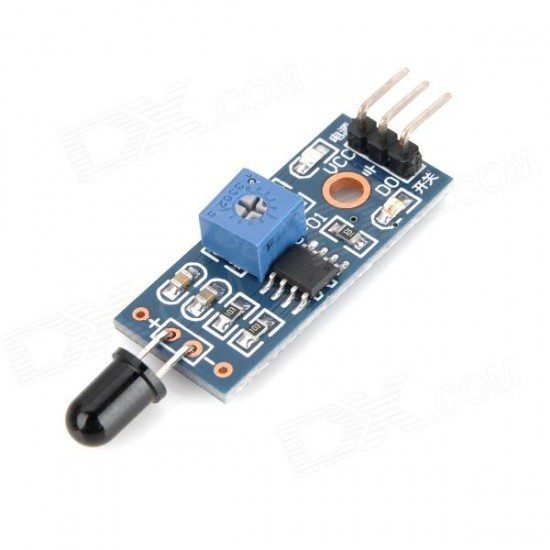

The IR Flame Sensor is designed to detect flames or strong infrared light sources within a specific wavelength range (typically 760 nm to 1100 nm). It uses an IR photodiode and comparator circuit to provide a digital output when a flame is detected. The onboard potentiometer allows adjustment of sensitivity. The sensor is easy to interface with microcontrollers such as Arduino, ESP32, or STM32 for fire alarm systems, robotic flame-following projects, and industrial safety monitoring.
Key Features
-
Detects flame or infrared light (760–1100 nm)
-
Digital output (high/low) with adjustable sensitivity
-
Onboard comparator circuit for precise detection
-
Easy interface with microcontrollers
-
Compact, breadboard-friendly design
Specifications
| Feature | Details |
|---|---|
| Detection Wavelength | 760–1100 nm |
| Digital Output | High/Low |
| Supply Voltage | 3.3V–5V |
| Current Consumption | ≤20 mA |
| Sensitivity Adjustment | Onboard potentiometer |
| Dimensions | 32 × 20 × 15 mm |
Applications
-
Fire detection and alarms
-
Flame-following robots
-
Industrial safety monitoring
-
DIY home automation and security projects
-
Emergency alert systems
Compatible Boards / Circuits
-
Arduino, ESP32, STM32, Raspberry Pi
-
Can interface with alarms, LEDs, relays, and buzzer modules
