Description

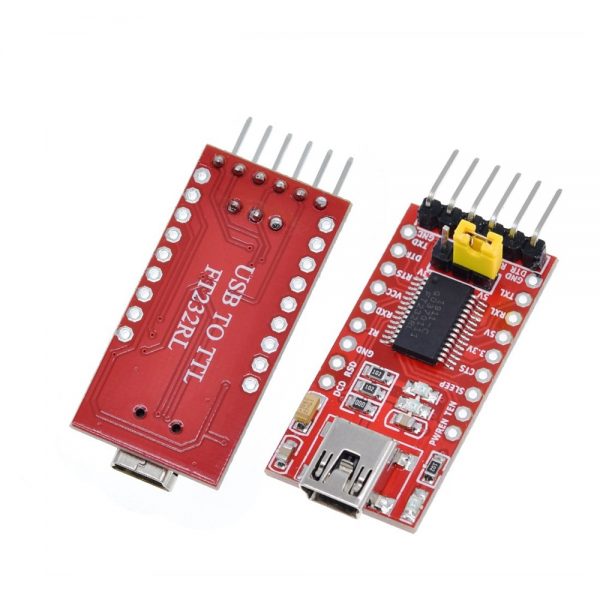

The FTDI FT232RL USB-to-TTL Programmer is a reliable and widely used USB-to-serial converter built around the FT232RL chipset.
It allows seamless communication between a computer’s USB port and microcontrollers, development boards, and embedded systems.
The module supports both 3.3V and 5V output levels, selectable via an onboard jumper, making it compatible with a wide range of devices.

It is commonly used for programming ESP8266 (ESP-01), flashing firmware, debugging UART communication, and interfacing with routers, GPS modules, GSM modules, and other serial devices.
Featuring stable drivers and high-speed USB communication, it is preferred in professional and hobbyist electronics environments.

Key Features

• Genuine FT232RL chipset

• USB-to-TTL Serial Converter

• Supports 3.3V / 5V selectable output

• Stable and high-speed communication

• Onboard power LED and TX/RX indicator LEDs

• Standard pinout: RX, TX, VCC, GND, DTR, CTS

• Ideal for programming, flashing, and debugging

• Compatible with Arduino, ESP8266, ESP32, and many TTL devices

Specifications

Applications

• Programming ESP8266 (ESP-01), ESP32, and Arduino boards

• Flashing firmware on routers and Wi-Fi modules

• Serial debugging and monitoring

• USB-TTL communication for embedded systems

• Interfacing GSM/GPS modules

• Bootloading custom microcontroller boards

• IoT device development and testing

Compatible Boards / Circuits

• ESP8266 (ESP-01, ESP-07, etc.)

• ESP32 Development Boards

• Arduino Pro Mini, Nano (old bootloader)

• GSM modules, GPS modules, routers

• Any device requiring USB-to-UART TTL communication
