Description

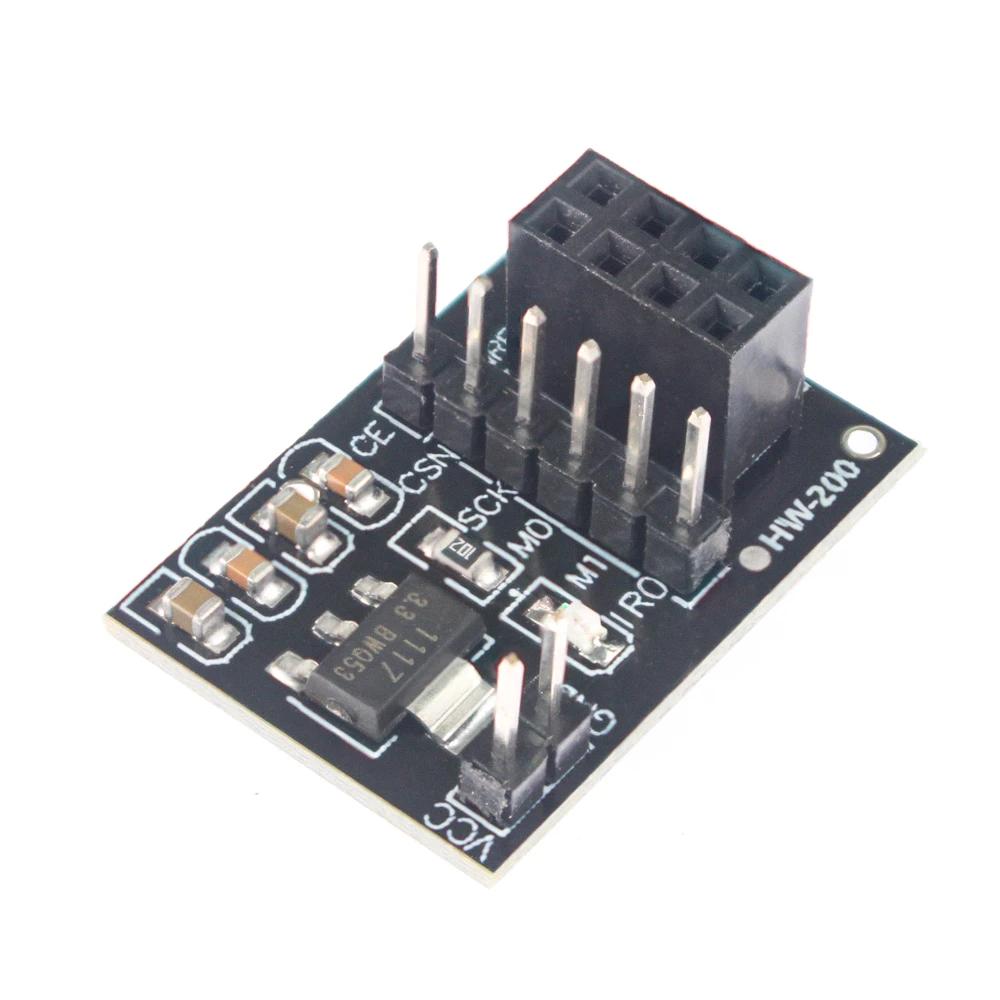

The NRF24L01 Breakout Adapter is a dedicated power and signal conditioning board designed to eliminate the common instability issues experienced when powering NRF24L01 wireless modules directly from a microcontroller. It includes an onboard 3.3V voltage regulator and noise-filtering capacitors, ensuring clean and stable power delivery to the radio module. This results in improved wireless range, reliability, and reduced packet loss—making it an essential add-on for any NRF24L01 or NRF24L01+ project.
Perfect for Arduino, ESP32, STM32, and Raspberry Pi projects involving wireless communication, sensor networks, or automation systems.
Key Features
-
Onboard 3.3V Voltage Regulator
Provides stable and clean power to NRF24L01 modules, preventing brownouts. -
Noise Filtering Capacitors
Reduces power noise significantly, improving RF performance and communication stability. -
Improved Range & Reliability
Provides the necessary current that microcontrollers often fail to supply. -
Easy Plug-and-Play
Standard header pins allow simple connection to breadboards or jumper wires. -
Universal Compatibility
Works with NRF24L01, NRF24L01+, and long-range NRF24L01+ PA/LNA modules.
Specifications
| Feature | Details |
|---|---|
| Input Voltage | 4.8V – 12V |
| Output Voltage | Regulated 3.3V |
| Regulator Type | AMS1117-3.3 (or equivalent) |
| Board Size | 36mm × 20mm |
| Output Current | Up to 800mA |
| Compatible Modules | NRF24L01, NRF24L01+ PA/LNA |
| Interface | 8-pin header for direct connection |
Applications
-
Wireless sensor networks
-
IoT devices and automation
-
Remote controls
-
Robot-to-robot communication
-
Home automation nodes
-
Long-range radio transmission projects
