Description

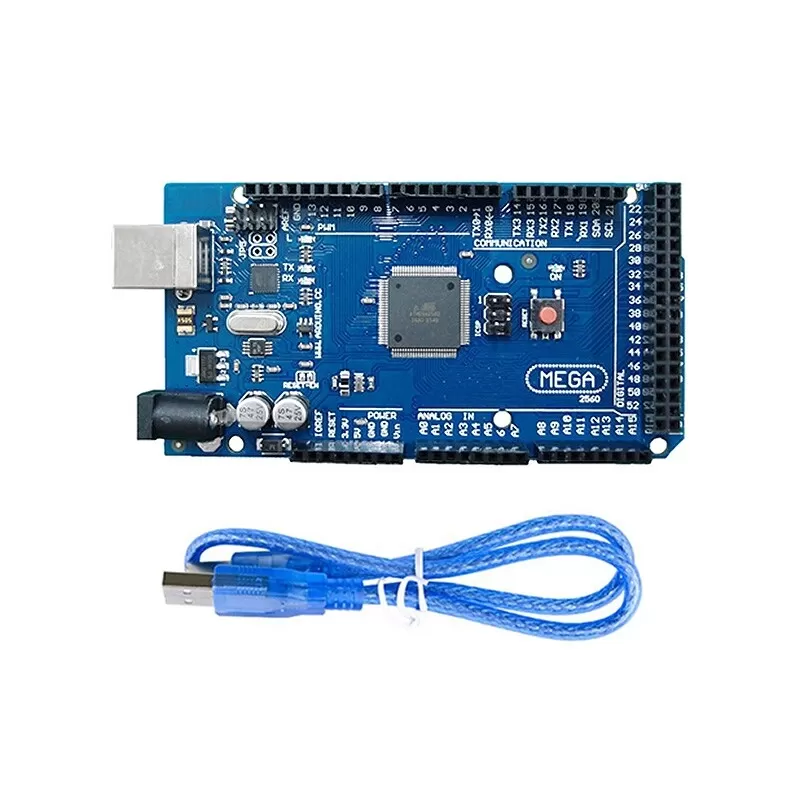

The Arduino Mega 2560 is based on the ATmega2560 microcontroller and provides 54 digital I/O pins, 16 analog inputs, and 4 UARTs (hardware serial ports). It offers significantly more memory and I/O options than the Arduino Uno or Nano, making it suitable for advanced robotics, 3D printer controllers, home automation systems, and large IoT projects. It is fully compatible with the Arduino IDE, supports USB programming, and integrates easily with shields and modules designed for Arduino.
Key Features
-
ATmega2560 microcontroller
-
54 digital I/O pins (15 PWM outputs)
-
16 analog input pins
-
4 UARTs for hardware serial communication
-
USB interface for programming and communication
-
Large memory: 256 KB flash, 8 KB SRAM, 4 KB EEPROM
-
Breadboard-friendly with multiple shield compatibility
-
Operating voltage: 5V
Variants
-
Arduino Mega 2560 (Original)
-
Arduino Mega 2560 R3 (with improved USB and pin layout)
Specifications
| Feature | Details |
|---|---|
| Microcontroller | ATmega2560 |
| Operating Voltage | 5V |
| Input Voltage (recommended) | 7–12V |
| Digital I/O Pins | 54 (15 PWM outputs) |
| Analog Input Pins | 16 |
| Flash Memory | 256 KB (8 KB used by bootloader) |
| SRAM | 8 KB |
| EEPROM | 4 KB |
| Clock Speed | 16 MHz |
| Dimensions | 101 × 54 × 15 mm |
Applications
-
Robotics and automation projects
-
3D printer controllers
-
Advanced IoT systems
-
Large-scale sensor networks
-
Embedded system development
Compatible Boards / Circuits
-
Compatible with Arduino shields designed for Mega
-
Works with Arduino IDE
-
Can interface with ESP32, Raspberry Pi, sensors, and modules
