Description

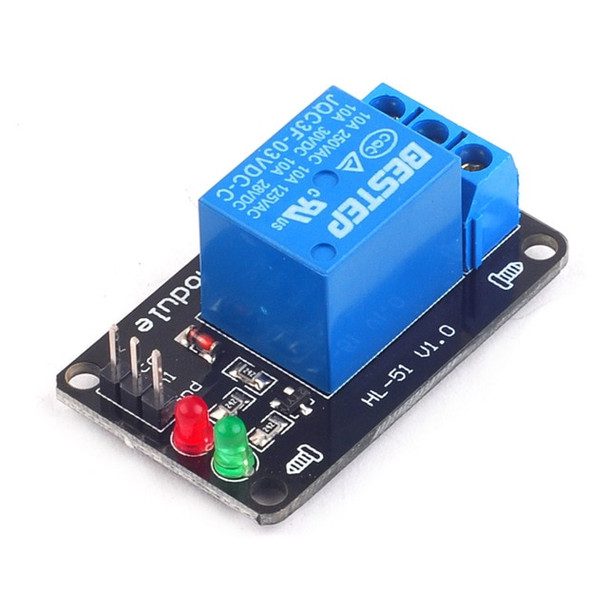

The 1-Channel Relay Module is a compact, high-quality electromechanical switch designed for controlling high-voltage AC or DC devices using low-voltage logic signals. It can be triggered by microcontrollers such as Arduino, ESP8266, ESP32, STM32, Raspberry Pi, and other logic-level systems.
The relay provides electrical isolation between the control circuit and the high-voltage load, making it suitable for home automation, industrial control, and smart IoT applications.
Key Features
-
Supports both AC and DC loads
-
Optocoupler isolation for noise protection (on opto-isolated version)
-
Works with 3.3V and 5V logic
-
High-quality relay with long lifespan
-
Status indication LED
-
Screw terminals for secure wiring
-
Suitable for microcontroller-based automation
Variants
-
Standard Relay (No optocoupler)
-
Optocoupler Isolated Relay
-
5V Relay Module
-
3.3V Relay Module
Specifications
| Feature | Details |
|---|---|
| Relay Voltage | 5V or 3.3V (depending on variant) |
| Trigger Voltage | 3.3–5V |
| Contact Rating | 10A @ 250VAC / 10A @ 30VDC |
| Control Signal Type | Low-level or high-level trigger (depends on model) |
| Output | NO, NC, COM |
| Isolation | Optional optocoupler |
| Indicators | Power LED & Relay status LED |
| Mounting | PCB mount / Screw terminals |
Applications
-
Smart home automation
-
Lighting control
-
Motor and pump switching
-
HVAC control
-
Industrial automation
-
IoT smart switches
-
Remote power control
-
Security systems
Compatible Boards
-
Arduino Uno / Mega / Nano
-
ESP8266, Wemos D1 Mini
-
ESP32 DevKit
-
Raspberry Pi (any model)
-
STM32 series
-
PIC / AVR / ARM boards
