Description

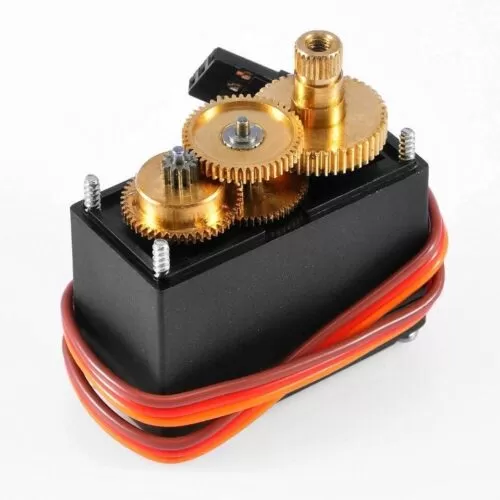

The MG995 Servo Motor is a popular high-torque servo featuring metal gears for durability and precise positioning. It is widely used in robotics, RC planes, cars, boats, and DIY automation projects. The servo can be controlled via PWM signals from Arduino, ESP32, or other microcontrollers, providing accurate rotational control up to 180° or 360° depending on the setup.
Key Features
-
High-torque metal gear servo motor
-
Operating voltage: 4.8–7.2V DC
-
Standard PWM control for precise positioning
-
Rotational range: ~180°
-
Compatible with Arduino, ESP32, Raspberry Pi
-
Durable and suitable for heavy-load projects
Variants
-
MG995 Standard Servo
-
MG995 with extended horn accessories
Specifications
| Feature | Details |
|---|---|
| Motor Type | Servo (Metal Gear) |
| Torque | 9–11 kg·cm at 6V |
| Operating Voltage | 4.8–7.2V DC |
| Speed | 0.20 sec/60° at 6V |
| Rotation Range | 180° |
| Connector | 3-pin (Signal, VCC, GND) |
| Dimensions | 40.7 × 19.7 × 42.9 mm |
Applications
-
Robotic arms and humanoid robots
-
RC planes, cars, boats
-
Automated control mechanisms
-
Educational and DIY electronics projects
-
IoT devices requiring rotational actuation
Compatible Boards / Circuits
-
Arduino Uno, Mega, Nano
-
ESP32 / ESP8266
-
Raspberry Pi (via PWM control)
-
Any microcontroller with PWM support
