Description

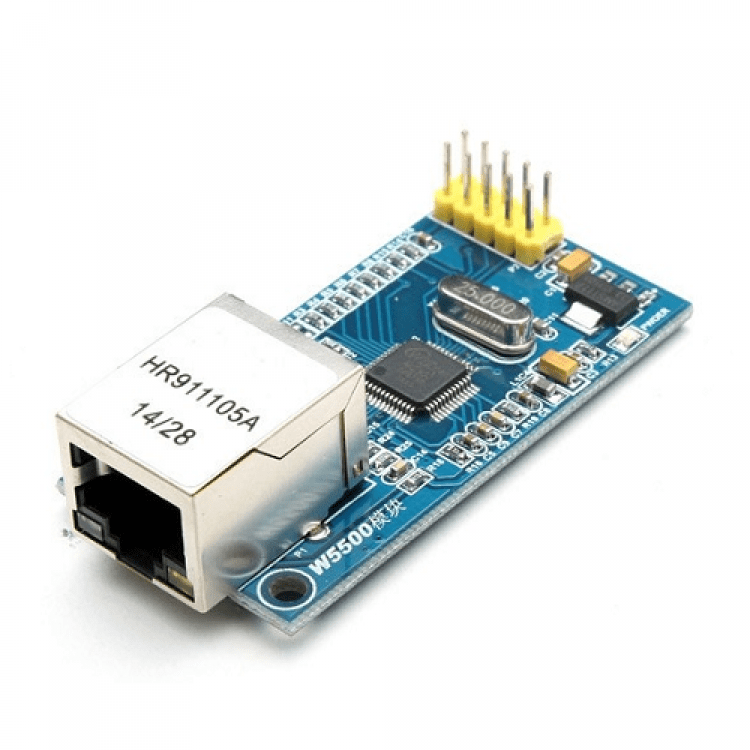

The W5500 Ethernet Module uses the W5500 hardwired TCP/IP embedded Ethernet controller, providing a fast and stable network connection with a SPI interface for easy microcontroller integration. It supports TCP, UDP, ICMP, IPv4, ARP, IGMP, and PPoE protocols, making it suitable for networked devices, IoT systems, web servers, and data transmission projects. The module is widely used in home automation, smart devices, and Ethernet-enabled Arduino and ESP32 projects.
Key Features
-
W5500 hardwired TCP/IP Ethernet controller
-
SPI interface for easy connection to microcontrollers
-
Supports TCP, UDP, ICMP, IPv4, ARP, IGMP, PPoE protocols
-
10/100 Mbps network speed
-
Compact and lightweight for embedded applications
-
Compatible with Arduino, ESP32, Raspberry Pi
Variants
-
Standard W5500 Module (SPI interface)
-
W5500 Module with PoE support
Specifications
| Feature | Details |
|---|---|
| Controller | W5500 Ethernet Controller |
| Interface | SPI (Serial Peripheral Interface) |
| Operating Voltage | 3.3–5V DC |
| Network Speed | 10/100 Mbps |
| Protocols Supported | TCP, UDP, ICMP, IPv4, ARP, IGMP, PPoE |
| Operating Temperature | -40°C to 85°C |
| Dimensions | 35 × 25 × 15 mm |
Applications
-
IoT Ethernet projects
-
Arduino / ESP32 web servers
-
Network-enabled data loggers
-
Smart home devices with Ethernet connectivity
-
Embedded networked systems
Compatible Boards / Circuits
-
Arduino Uno, Mega, Nano
-
ESP32 / ESP8266
-
Raspberry Pi (via SPI)
-
Any microcontroller supporting SPI communication
