Description

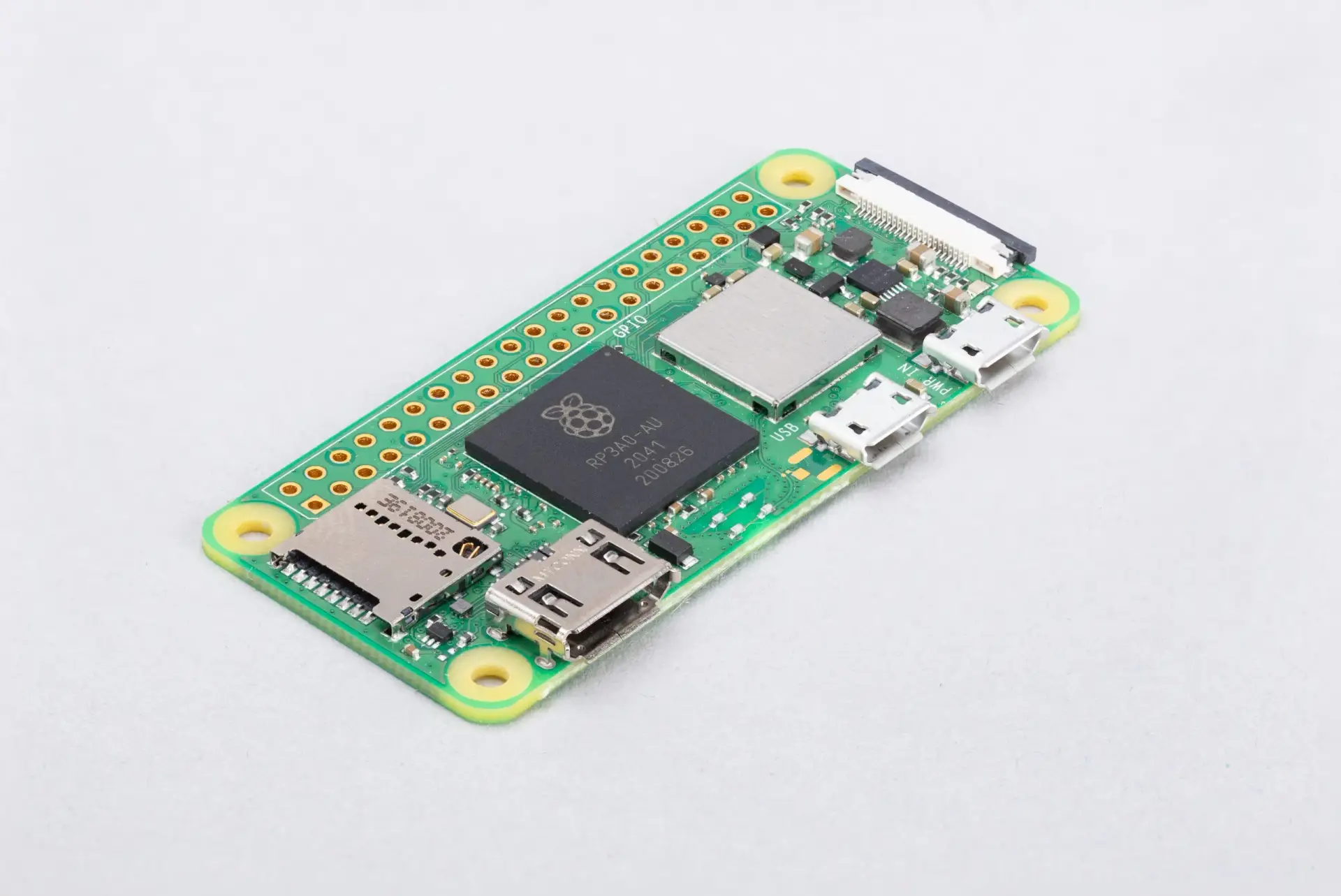

The Raspberry Pi Zero 2 W is a miniaturized, high-efficiency computer built around the RP3A0 system-in-package (SiP), which integrates a quad-core 64-bit ARM Cortex-A53 CPU clocked at 1GHz and 512MB of LPDDR2 SDRAM.

Despite its small size, it delivers performance nearly five times faster than the original Pi Zero and supports the same accessories and GPIO pinout, ensuring full compatibility with existing projects.

With built-in Wi-Fi (2.4GHz 802.11 b/g/n) and Bluetooth 4.2 BLE, it’s an ideal choice for IoT, wearable tech, automation, and sensor networks where space and power efficiency are critical.

Key Features:

• Processor: Broadcom BCM2710A1, Quad-core 64-bit ARM Cortex-A53 @ 1GHz

• Memory: 512MB LPDDR2 SDRAM

• Wireless Connectivity:

  • 2.4GHz 802.11 b/g/n Wi-Fi

  • Bluetooth 4.2, BLE

• Ports:

  • Mini HDMI port

  • Micro-USB OTG port

  • Micro-USB power input

  • CSI camera connector

• GPIO: 40-pin header (unpopulated)

• Storage: MicroSD card slot

• Power Supply: 5V DC via micro-USB

• Dimensions: 65mm × 30mm × 5mm

Applications:

• IoT edge devices

• Home automation controllers

• Compact robotics and drones

• Wireless sensor networks

• Portable monitoring systems

• Smart display and camera projects
