Description

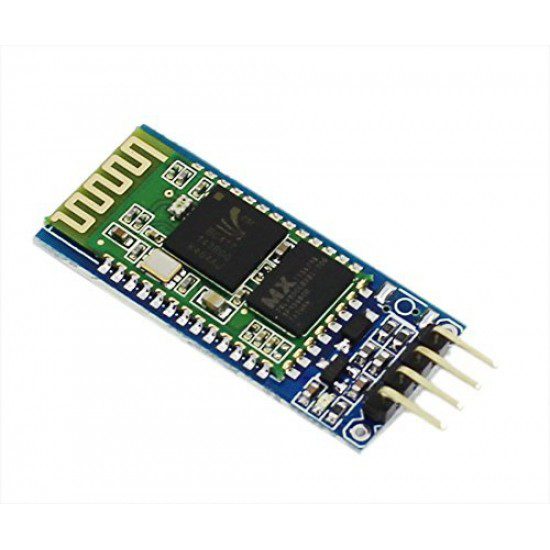

The HC-05 Bluetooth Module is a versatile and widely used serial communication module.
Unlike the HC-06, it can operate as master or slave, making it suitable for both point-to-point and master-slave Bluetooth applications.
It communicates via UART (TX/RX) and is compatible with Arduino, ESP32, ESP8266, and Raspberry Pi, enabling wireless control, sensor data transmission, and remote debugging.
HC-05 is ideal for robotics, IoT, home automation, and wireless serial communication projects.
Key Features
-
Bluetooth 2.0 + EDR serial module
-
Operates in master or slave mode
-
UART interface (TX, RX)
-
Communication range up to 10 meters
-
Compatible with 3.3V – 5V logic levels
-
Easy integration with Arduino, ESP32, ESP8266, and Raspberry Pi
-
Low power consumption and compact design
Specifications
| Feature | Details |
|---|---|
| Operating Voltage | 3.3V – 5V DC |
| Communication Interface | UART (TX/RX) |
| Baud Rate | Default 9600 bps (configurable via AT commands) |
| Bluetooth Version | 2.0 + EDR |
| Range | Up to 10 meters |
| Logic Levels | 3.3V / 5V compatible |
| Current Consumption | ~30 mA |
| Dimensions | 36 × 15 mm (approx.) |
Applications
-
Wireless serial communication between microcontrollers and PCs
-
Remote-controlled robotics and IoT projects
-
Home automation and smart devices
-
Serial debugging and monitoring
-
Sensor data transmission to mobile apps
-
Educational and DIY electronics projects
Compatible Boards / Circuits
-
Arduino (Uno, Nano, Mega)
-
ESP32 / ESP8266
-
Raspberry Pi
-
UART-enabled devices for wireless serial communication
